Automatic wheat flour packing machine for kraft paper bag

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, wheat flour packing machine

Application : powder

Packaging Type : open mouth bags, Bags, Barrel

Place of Origin : Jiangxi, China

Brand Name : BlueRay

Dimension(L*W*H) : 3000*1200*2500mm

Product name : Automatic wheat flour packing machine for kraft paper bag

Three load cell : high weighing accuracy

Double screw feeder : feeding speed with fast-midium-slow

Control box : full touch screen panel

Automatic bag clamp : sensor control

PLC system : easy operating

Packing material : powder

Sewing machine : full automatic

OEM service : 15 years R&D experience

Quality warranty : one year

Condition : New

Packaging Material : Wood, wheat flour packing machine in wooden case

Automatic Grade : Semi-automatic

Driven Type : Pneumatic

After-sales Service Provided : Engineers available to service machinery overseas

Type : Other

Voltage : AC220V/380V/50HZ

Power : 3KW

Weight : 1500KG

Certification : CE ISO

Supply Ability : 100 Set/Sets per Month Automatic wheat flour packing machine for kraft paper bag

Packaging Details : 1, Each automatic wheat flour packing machine will be packed in a big wooden case, then in a container 2, 1 set/ wooden box, size around 4.5*2*2meter, g.w around 1500-2000kg 2, Customized needs available

Port : Shanghai or any port in China

MOQ : 1 - 1 Sets

Price : $12,000.00

Contact Now

Product Description

1, Product Name: Automatic wheat flour packing machine for kraft paper bag

2, Item: DCS-50WF

Application materials
automatic paper bag flour packing machine for powder
Display Resolution
5g, 10g
Weighing Range
10-50kg/bag or customized needs
Precisions
+/-(0.1-0.2)% FS
Packing Capacity
120-180 bags/hour
Dimention(L*W*Hmm)
3000*1200*2600mm, the size can be customized according to your site
Power Supply
AC220V/380V, 50HZ, 1P/3P, customized available
Air Source
0.5-0.7 Mpa
Power
3KW
Working Temperature
-10~40 ℃
Relative Humidity
≤90% RH(Non-condesing)
Application
Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag

Application Materials(products)

Screw feeding type packing machine suit for pack   powder of any industry,such as flour, starches, lime powder, cement, fertilizer,silica sand powder,            nitrate of potash, ammonium sulfate etc

Application Bags(open mouth bags)

This bagging machine is especially designed for pack materials(products) into open mouth bags,such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc

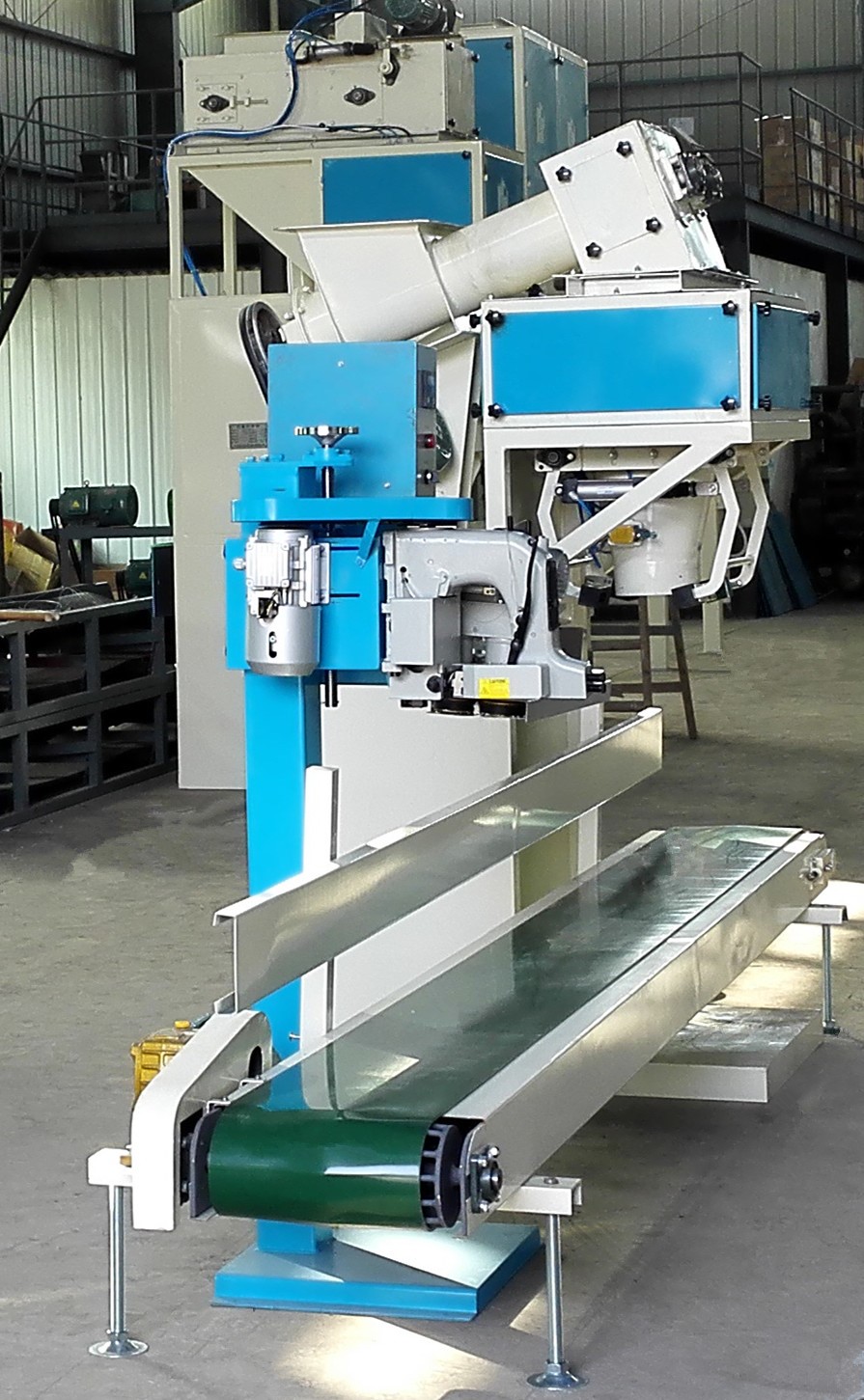

Detailed Images

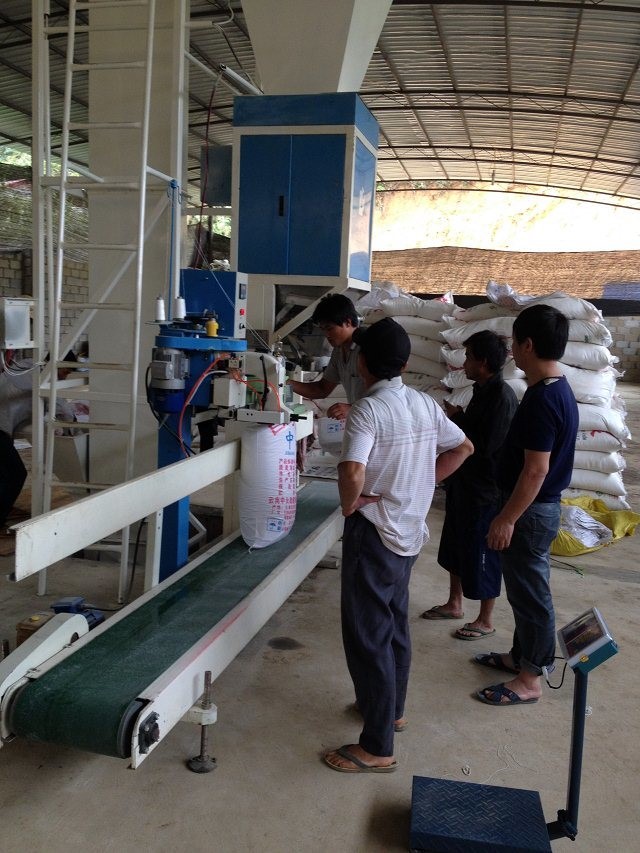

Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag
Working Process
Automatic wheat flour packing machine for kraft paper bag

Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic    discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing

Advantage
Automatic wheat flour packing machine for kraft paper bag

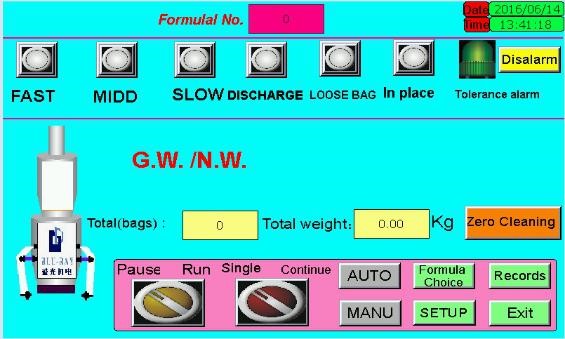

Control Box

+Full touch screen panel
+PLC system
+Photoelectric sensor switch
+English/Chinese view
+Easy operation interface
+Proction data record & print
+Connect computer available



Three pieces of Load Cell

(weighing sensor)

+Famous brand load cell, more stable
+Installed 3pieces load cell, high weighing accuracy




Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag




Dual Screw Feeding Mechanism

+Dual screw design(coarse screw+fine screw)
+Control by the PLC system and dual motor
+Feeding speed with fast-midium-slow due to the motor frequency change

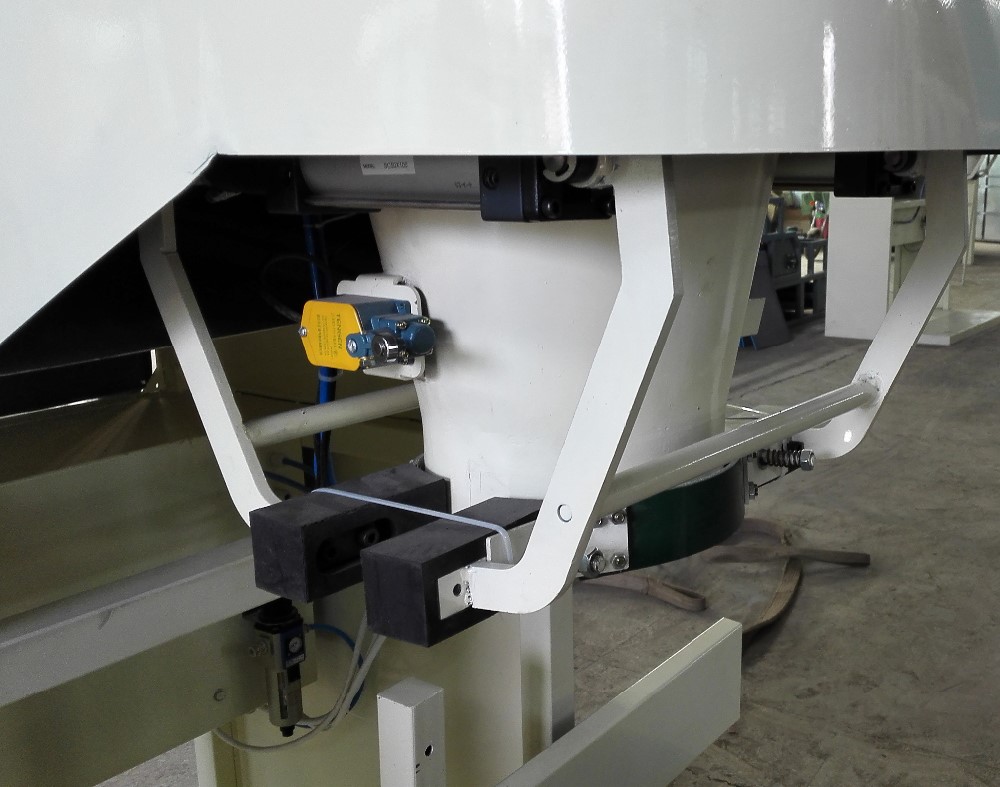

Automtic Bag Clamp/Loose Mechanism

+Photoelectric sensor switch
+Big force 2pcs air cylinder control
+Automatic bag clamp and loose
+Automatic materials dischage
+Suit for different bag size

Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag


Dust Air Outlet

+All of our packing machine will install air outlet
+Connect your dust removal device, making the
working environment more hygienic
+Add our pulse dust collector,
dust collection≥99.8%

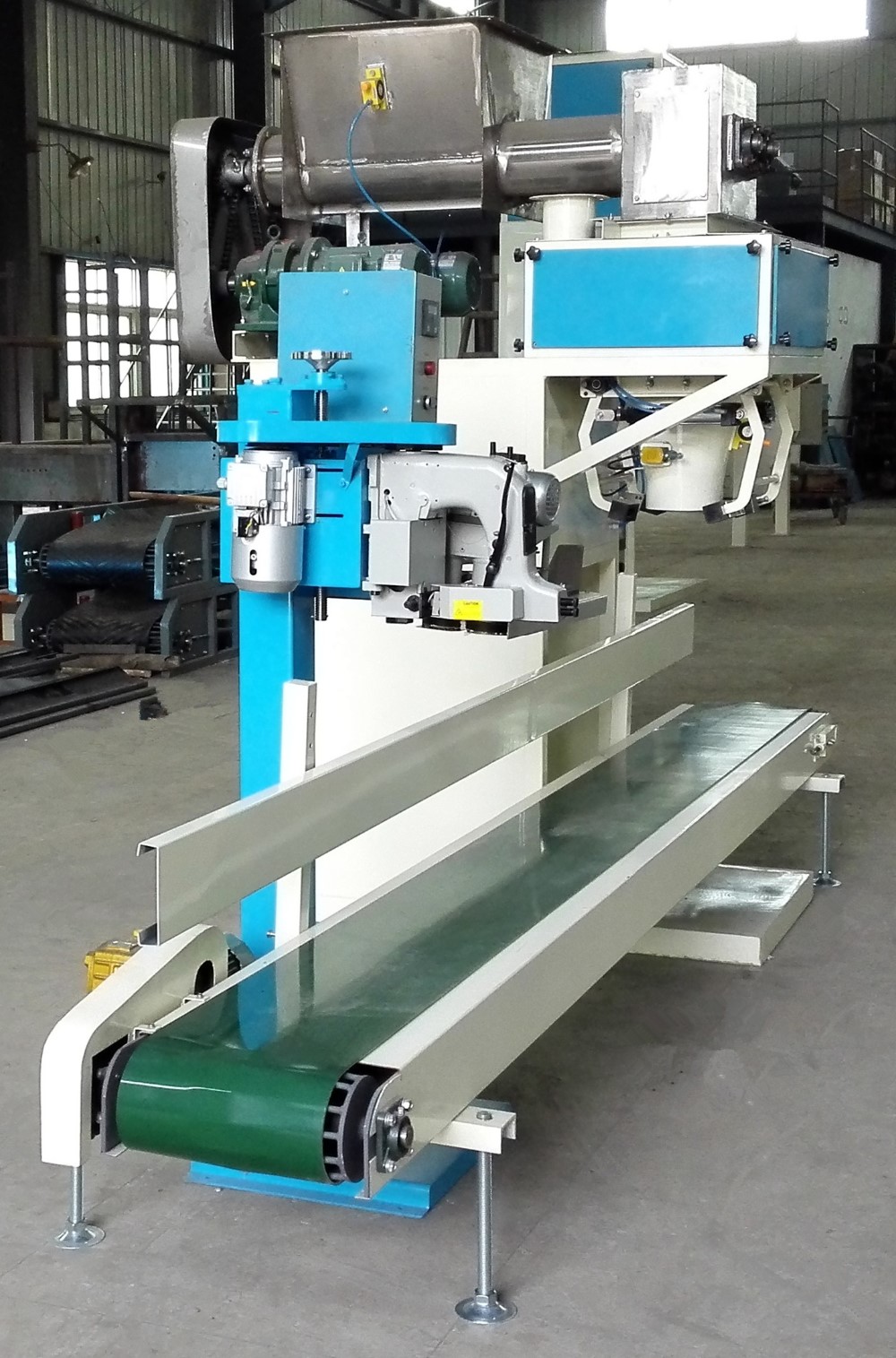

Automatic Sewing Machine

+Automatic bag top folding device(opitional)
+Photoelectric sensor switch
+Automatic knife thread cut
+Single needle double thread chain
+Production data record & print
+Thread end length ajustable
+Bag sewing heigth adjustable
+With automatic bag conveyor

Automatic wheat flour packing machine for kraft paper bag
Packing & Delivery
Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag

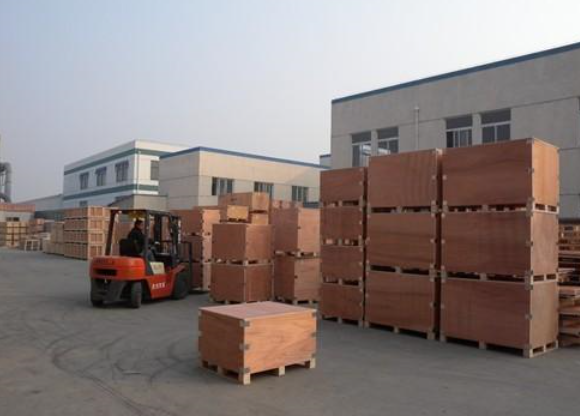

Package in wooden case

All equipments will package in the
wooden case and fixed by the steel
then in the cantainer

Transport by truck

We will transport the machine to
Shanghai port(or any port of China you need)by the truck

Ship by the cargo vessel

All machines will in container then
ship to the sea port of your country by the boat

Related Products
Item
DCS-50WF
DCS-50F
DCS-50SF
Application materials
All kinds of power for any industry
Display Resolution
5g, 10g
Weighing Range
5-50kg/bag or customized
Precisions
+/-(0.1-0.2)% FS
Packing Capacity
120-180 bags/hour
240-360 bags/hour
500-600 bags/hour
Dimention(L*W*Hmm)
3000*1200*2600
3000*1200*3200
4000*1200*3700
Power Supply
AC220V/380V, 50HZ, 1P/3P, customized available
Air Source
0.5-0.7 Mpa
Power
3KW
3KW
6KW
Working Temperature
-10~40 ℃
Relative Humidity
≤90% RH(Non-condesing)
Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag

DCS-50WF（click ☝）

Non weighing hopper screw feeding     type packing machine

packing speed 120-180 bags/hour

DCS-50F（click ☝）

Single weighing hopper screw

feeding type packing machine
packing speed 240-360 bags/hour

DCS-50SF（click ☝）

Dual weighing hopper screw feeding    type packing machine
packing speed 500-600 bags/hour

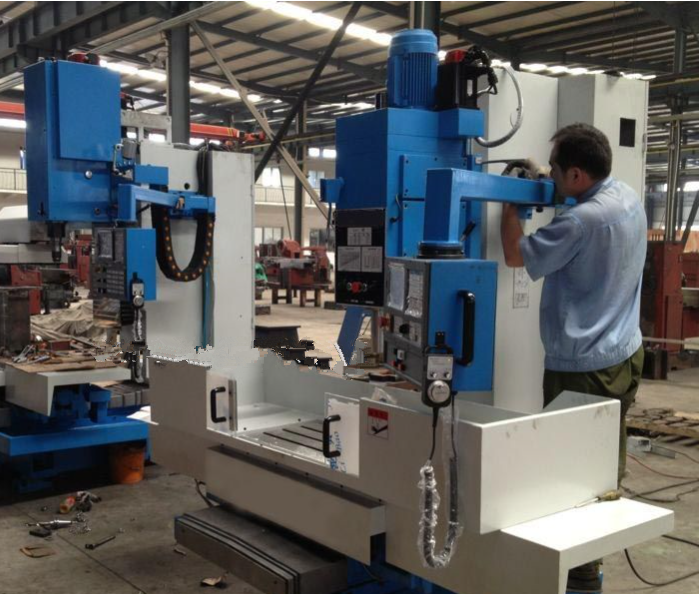

Our Company
Automatic wheat flour packing machine for kraft paper bag

Jiangxi Blue Ray M & E Co., Ltd

-15 years professional manufacturer of packing machines,sewing/heat sealing machine,automatic palletizer
machine,elevator/conveyor etc
-More than 10 person engineers team,OEM service and customized design are available
-3000㎡ working shop, high production capacity
-Sales and after sales team 24 hours online service

Flowing chart:

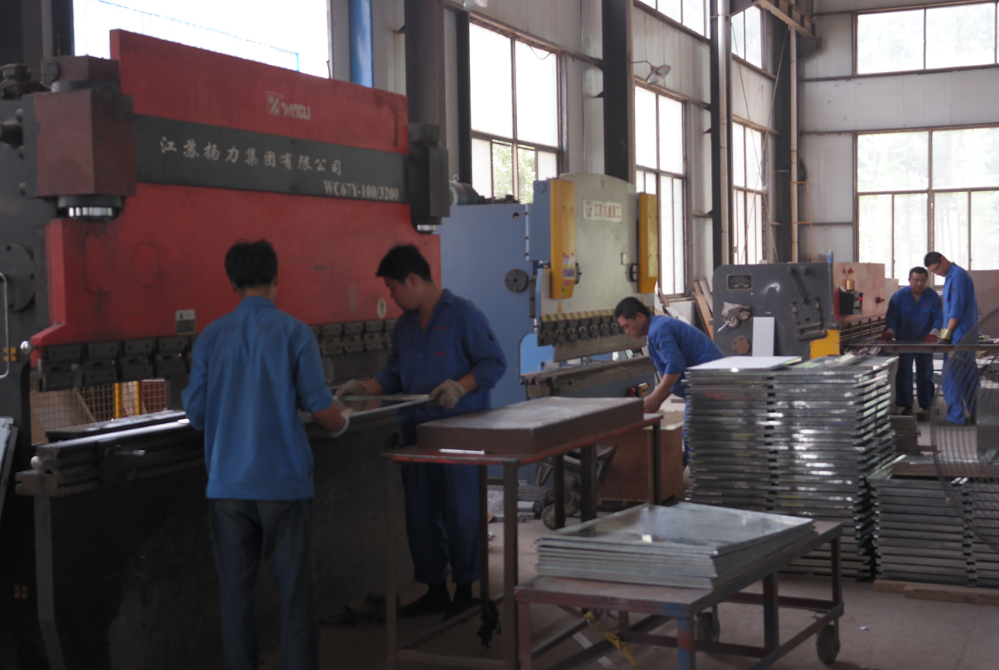

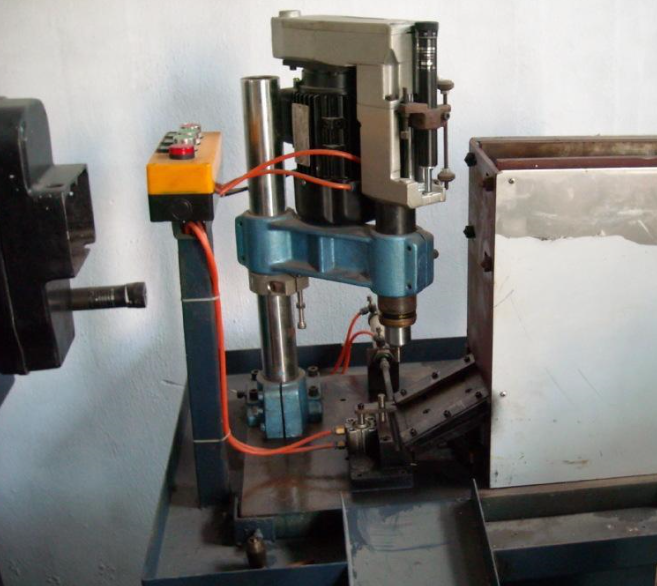

Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service

Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag

Certificate

We are Alibaba Gloden Supplier with assessment and the BV certificate, CE certificate and CMC (China Metrology Certification)

Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag
Automatic wheat flour packing machine for kraft paper bag

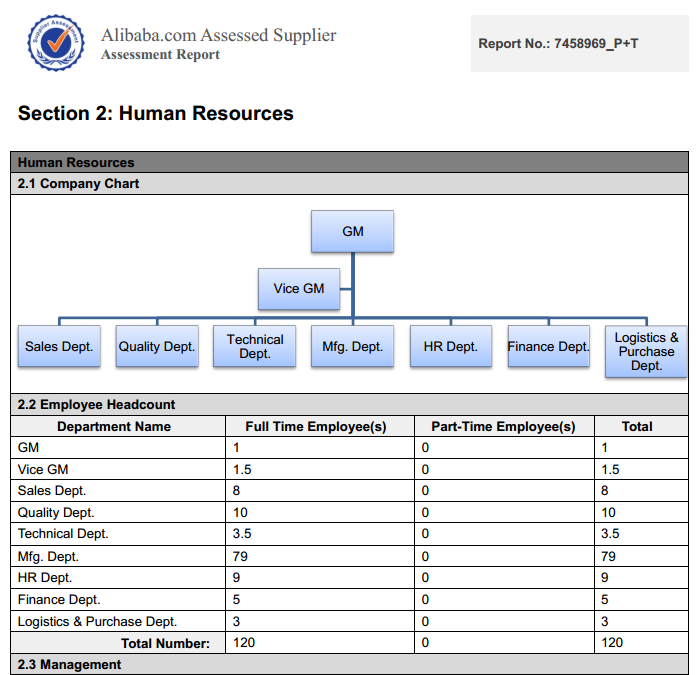

ALIBABA SUPPLIER ASSESSMENT

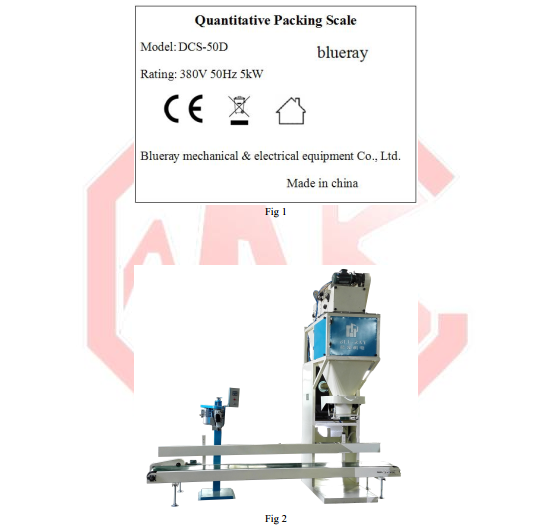

                   CE CERTIFICATE
